GPS.00.308.35600 - SW-MOTECH - Universal GPS mount kit with T-Lock Smartphone big - Incl 2" socket arm, for handlebar/mirror thread

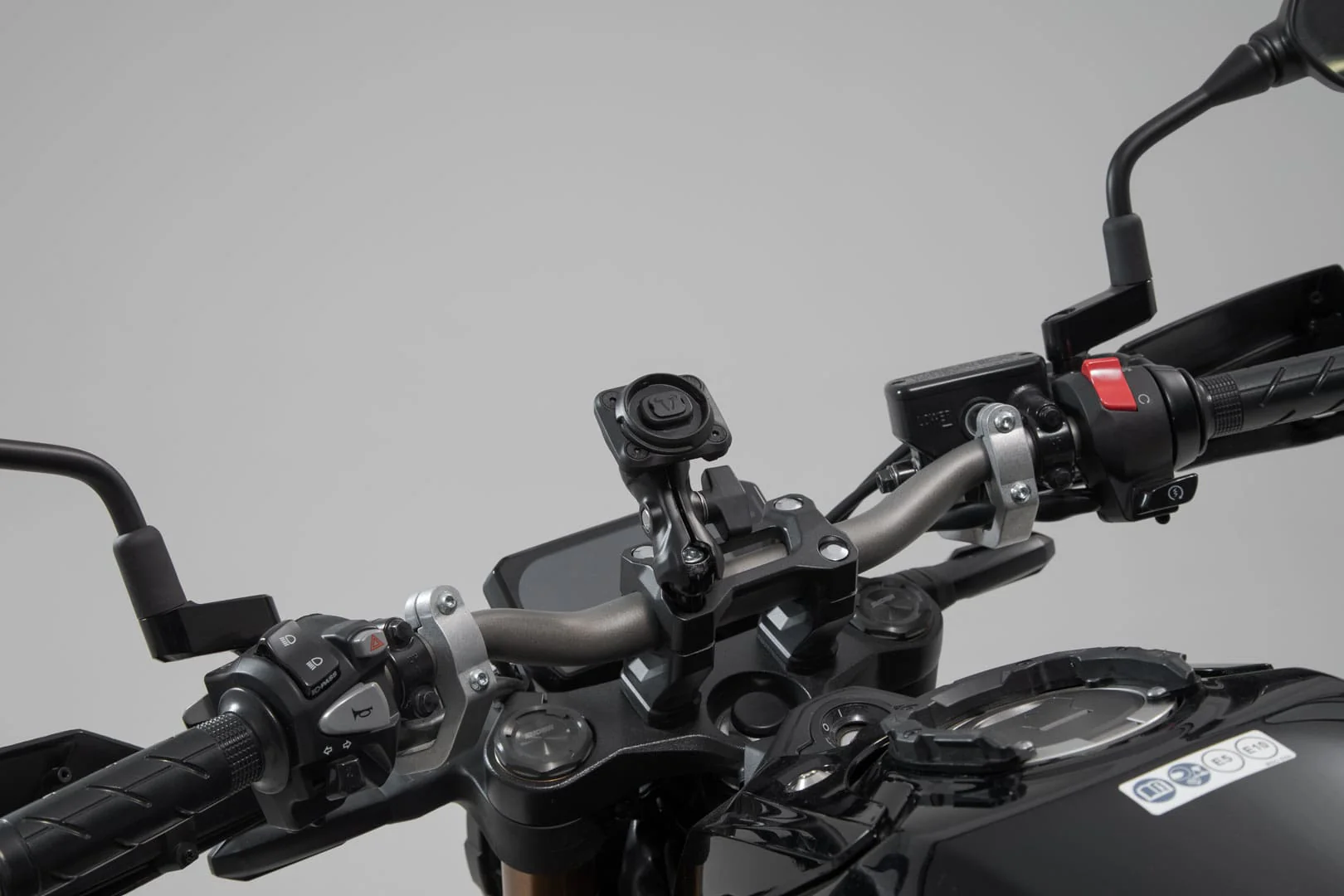

Our universal kit offers a variety of different mounting options on the motorcycle: the 1-inch ball provided can be mounted on an M6 or M8 thread, mirror thread holder or a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22.28 mm or 1 in. A pivoted socket arm makes positioning in the cockpit easy - so the display always remains in plain sight, without obstructing instrument view. The T-Lock holder with smartphone mount is included in delivery and allows you to quickly attach smartphones to the Universal Navi kit. The T-Lock holder can be secured to the socket arm with a quarter turn clockwise. The silicone straps on the smartphone mount are used to attach devices of different sizes.

• For smartphones with maximum external dimensions of 165 x 80 x 12 mm and minimum external dimensions of 144 x 71 x 7 mm
• T-Lock holder for quick attachment to the socket arm
• Smartphone mount with silicone straps
• Balls and 2" socket allow for individual positioning
• Socket can be pivoted in two axes up to 90° or 45°
• The 1-inch ball can be mounted on an M6 or M8 thread, mirror thread holder or a mounting clamp
• Mounting clamp for handlebars with a diameter of 22 mm, 28 mm or 1 inch

Package Contents:

• 1 x Universal mounting clamp with rubber inserts
• 1 x Ball with M8 thread and M6 converter
• 1 x Support for attaching mirror thread
• 1 x 2" socket arm
• 1 x Ball joint with mounting plate
• 1 x T-Lock holder for smartphone
• Mounting instructions
• Mounting material

Technical Details:
Color: black
Total Weight: appr. 0,5 kg / appr. 1.0 lb



📄 - Download Installation Instructions
